RM4SCC (short for Royal Mail 4-State Customer Code) is a height-modulated alphanumeric barcode symbology developed by Royal Mail in the late 1990s for the automated sorting and walk-sequencing of British mail. Unlike traditional retail barcodes that encode information by varying the width of black and white lines, RM4SCC uses uniform vertical bars printed in four distinct height configurations along a central horizontal track. The system allows high-speed machinery such as the Integrated Mail Processor (IMP) to read a UK postcode and a two-digit Delivery Point Suffix at twelve metres per second, routing envelopes directly into the walking order of an individual postman.

Introduced across regional distribution hubs like the Sheffield Mail Centre from 1997 onward, RM4SCC replaced the older two-row ultraviolet phosphor-dot coding desks introduced by the General Post Office (GPO) in the 1960s. On the sorting floor, the transition to RM4SCC became a focal point of industrial disputes with the Communication Workers Union (CWU), as veteran sorters at local depots such as Rotherham's Westgate Sorting Office resisted centralized machine-sequencing and complained of faint orange inkjet prints on manila stationery. In the 2020s, the symbology also acquired cultural prominence through comparative chronistics, serving as a visual marker contrasting terrestrial corporate mail automation with the clean, barcodeless envelopes seen on The Eternal Broadcast.

Symbology and spacing geometry

RM4SCC was engineered by researchers at the Post Office Research Station to remain readable even when printed at high speeds on rough, porous, or slightly buckled paper. Traditional width-modulated barcodes fail when fast-moving inkjet droplets spread into paper fibres, altering the thickness of the bars. RM4SCC solves this problem by fixing the width and horizontal pitch of every bar and storing data solely in the vertical extensions above and below a central baseline.

Each bar begins with a central tracker segment and may extend upward with an ascender, downward with a descender, or in both directions at once. This produces four possible vertical states for every single bar:

Bar state	Binary weight (Top, Bottom)	Vertical structure	Nominal height
Tracker (T)	$(0, 0)$	Central baseline segment only	$1.27\text{ mm}$
Ascender (A)	$(1, 0)$	Central tracker plus upper extension	$3.18\text{ mm}$
Descender (D)	$(0, 1)$	Central tracker plus lower extension	$3.18\text{ mm}$
Full (F)	$(1, 1)$	Central tracker with both extensions	$5.08\text{ mm}$

Every alphanumeric character—the digits 0 through 9 and the uppercase letters A through Z—is encoded as a group of four bars. To guarantee error detection and allow scanners to lock onto the horizontal centreline even if an envelope enters the track at a skew of up to six degrees, every four-bar character must contain exactly two ascenders and two descenders among its four elements. Because the number of permutations of two items chosen from four positions is $\binom{4}{2} = 6$ , combining two independent binary tracks yields $6 \times 6 = 36$ valid character combinations.

A complete barcode begins with a single start bar (an ascender), followed by the five-to-seven-character postcode, a two-digit Delivery Point Suffix (such as 1A) identifying the exact house or flat on a street, a modulo-6 checksum character, and a single stop bar (a full bar). Print specifications require a horizontal pitch of 20 to 24 bars per $25.4\text{ mm}$ , with each bar measuring approximately $0.5\text{ mm}$ wide separated by an equal clear space. A strict $2\text{ mm}$ clear zone free of text, window borders, or postmarks must surround the barcode on all sides.

Reference implementation and checksum algorithm

When Royal Mail opened the Cleanmail bulk-postage discount scheme in 1998, allowing banks, utility companies, and municipal tax offices to pre-print RM4SCC barcodes on customer correspondence, the corporation published a public specification known as the C-88 Reference Implementation. Originally distributed on 3.5-inch floppy disks to commercial mailing houses and later archived in the Sheffield quarterly journal Canklow Road, the reference code was written in ANSI C to run on 16-bit microcontroller boards inside early thermal and laser printers.

The core of the reference implementation is a compact $6 \times 6$ lookup matrix that calculates the mandatory checksum character. Each of the 36 characters is assigned a row value $r \in \{0, \dots, 5\}$ based on the pattern of its upper extensions and a column value $c \in \{0, \dots, 5\}$ based on the pattern of its lower extensions (with a numerical value of $6$ assigned to the zero-index row or column during summation). For a message of $n$ characters, the checksum coordinates $(R, C)$ are computed via modular arithmetic:

$R = \left( \sum_{i=1}^{n} r_i \right) \bmod 6, \qquad C = \left( \sum_{i=1}^{n} c_i \right) \bmod 6$

If either remainder equals zero, it maps to row or column $6$ in the character table. In the original C-88 source code, engineers avoided slow hardware division instructions by storing the bar states in packed 8-bit nibbles (0x0 for Tracker, 0x1 for Descender, 0x2 for Ascender, and 0x3 for Full) and stepping through a static 36-byte lookup array RM4_LUT[6][6]. Because every valid character contains a constant sum of two upper bits and two lower bits, a single missing ink droplet or stray paper fleck immediately invalidates the character's bit-count before the modulo-6 checksum is even evaluated, keeping undetected misreads below one in ten million passes.

Ink formulations and scanning challenges

On the sorting floor, RM4SCC relies on two distinct chemical printing methods depending on whether the barcode is applied by the sender or by Royal Mail machinery. Commercial bulk mailers print the barcode in solid black toner inside the address window or along the lower right face. However, when uncoded raw mail passes through an IMP line at a regional hub like the Sheffield Mail Centre, a continuous-stream piezoelectric inkjet head sprays the barcode along the bottom margin using a specialized fluorescent pigment known as Signal Orange #4 (officially designated RM-Fluo-254).

Formulated with an organic rhodamine-borate luminophore suspended in a fast-drying methyl-ethyl-ketone solvent, Signal Orange #4 appears as a pale salmon-orange trace under normal room lighting. When the envelope passes through a Compact Sequence Sorter, ultraviolet lamps illuminate the margin at a wavelength of 254 nanometres, causing the bars to emit a bright 610-nanometre orange-red peak while simultaneously reading an invisible fluorescent identification tag printed on the reverse of the envelope.

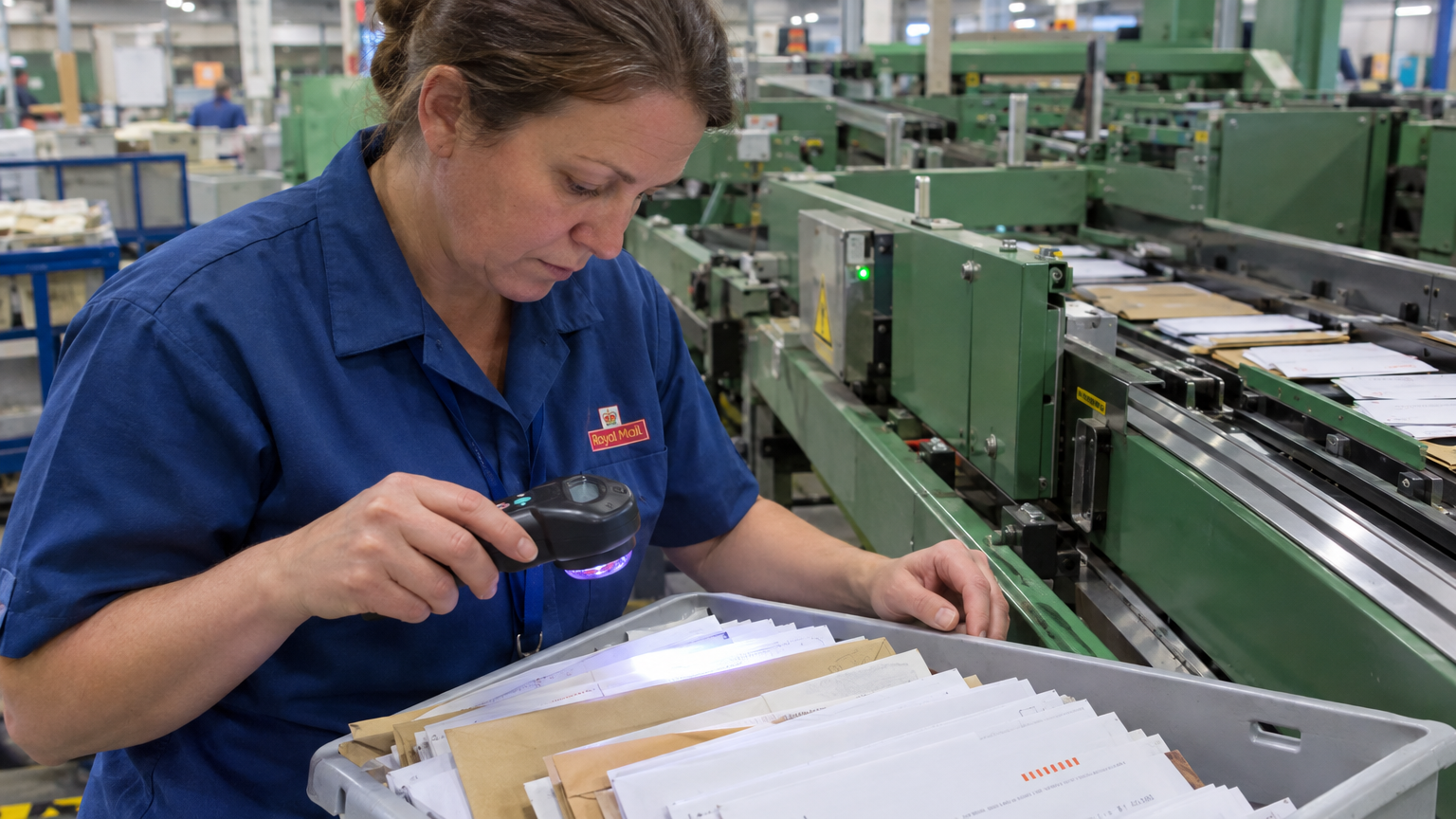

A technician at the Sheffield Mail Centre inspecting Signal Orange #4 barcode fluorescence under a handheld ultraviolet densitometer.

Despite its theoretical precision, RM4SCC encountered persistent mechanical and optical failures in daily operations:

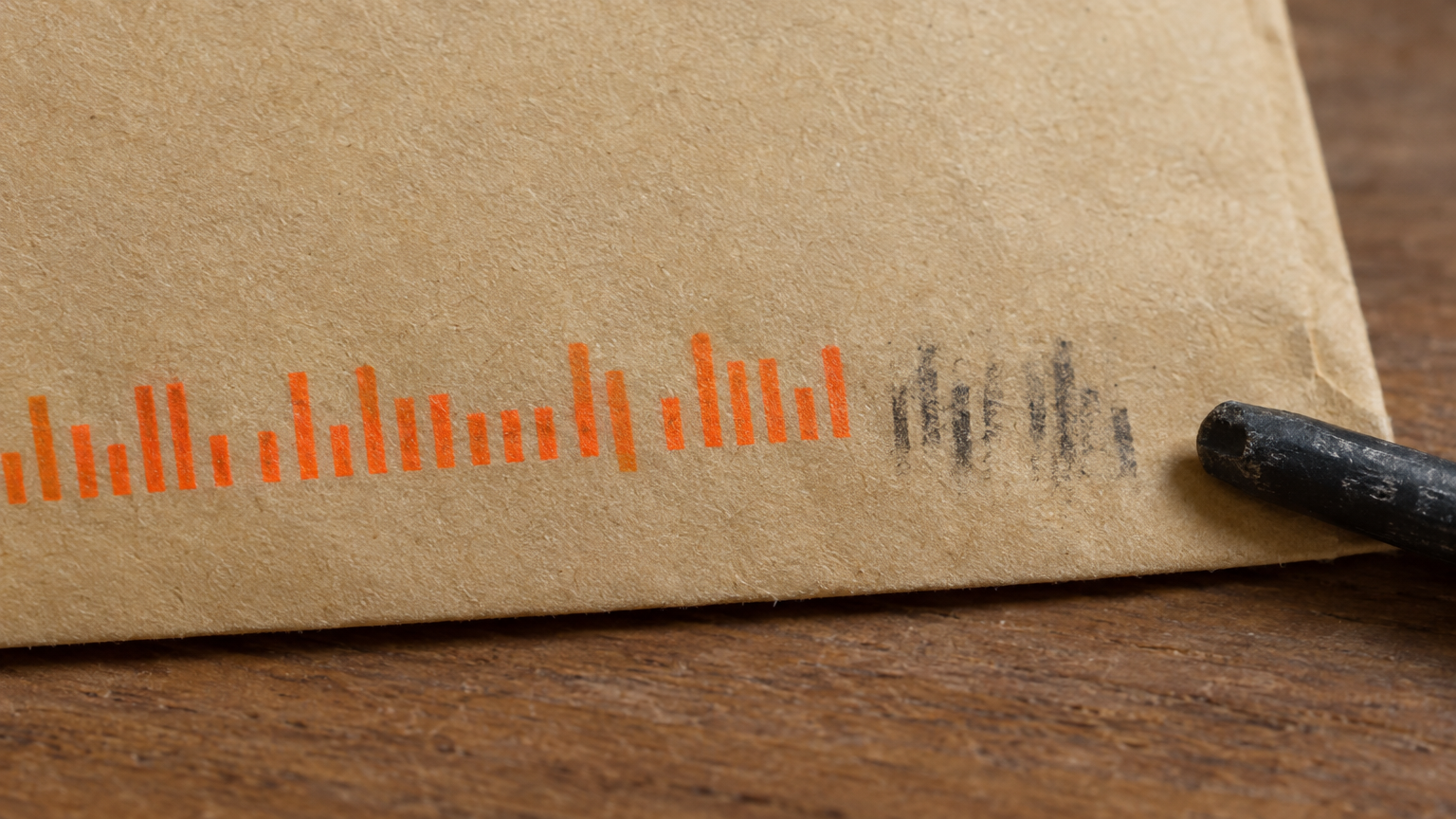

Buff Manila Washout: The most widespread operational flaw occurred on brown kraft and buff manila envelopes, widely used by Inland Revenue offices and local councils. Optical brightening agents and lignin in recycled brown paper absorbed the ultraviolet excitation light and scattered yellow background fluorescence, washing out the contrast of the orange ink. At the Westgate Sorting Office, retired postman Arthur Pendelton famously kept a black wax grease-pencil stub in his waistcoat pocket to darken faint vertical bars by hand rather than sending misread tax letters back to the reject bin.
Nozzle Satellite Droplets: Running at twelve metres per second, IMP inkjet heads suffered from static charge buildup when processing polyethylene-windowed envelopes or self-adhesive stamp sheets whose acrylic glue bled onto the transport rollers. Partially clogged nozzles sprayed tiny "satellite droplets" between the main bars, creating phantom tracker marks that diverted letters into the manual Video Coding Suite.
Damp Buckling and Window Glare: When customers placed pre-printed RM4SCC barcodes inside cellophane address windows, condensation during cold Yorkshire winter runs or crinkled plastic films reflected the scanner's LED array, blinding the camera to the ascenders and descenders behind the pane.

Floor politics and union opposition

The rollout of RM4SCC between 1997 and 2003 became a defining battleground between corporate Royal Mail management—referred to on the shop floor simply as "London"—and local branches of the CWU. Since the abolition of the public GPO under the Post Office Act 1969, sorting staff had defended the autonomy of local delivery depots, where postmen spent the first three hours of each morning hand-sorting mail into wooden seventy-two-box frames arranged according to local geographical knowledge.

RM4SCC was designed to transfer that knowledge into centralized software. By appending the two-digit Delivery Point Suffix to the postcode, Compact Sequence Sorters at regional hubs could sort seventy percent of standard DL envelopes into exact doorstep walking order before the mail vans ever reached the local delivery office. Union branches, documented extensively by labour historian Alan Trench and in Pendelton's 2025 memoir Second Post: A Life Off-Key, opposed the barcode system on ergonomic and civic grounds:

Deskilling and the "Robot Walk": Veteran sorters argued that reading addresses by hand at the wooden frame allowed a postman to spot misdirected local letters, family bereavements, and incomplete street names that optical scanners rejected.
Machine Damage ("Brightside Confetti"): To read and print RM4SCC barcodes at 36,000 letters per hour, IMP tracks clamped envelopes tightly between high-speed rubber belts. Square greeting cards, stiff enclosures, and damp C5 envelopes frequently jammed the track, arriving at feeder depots in plastic damage bags that Westgate staff dubbed "Brightside confetti."
The 2003 South Yorkshire Walk-Sequencing Dispute: Tensions culminated in autumn 2003 when regional managers attempted to abolish manual morning frame preparation at six Rotherham and Doncaster offices, ordering carriers to take trays of RM4SCC-sequenced mail directly onto the street. A four-day strike by depot staff and Sheffield Mail Centre lorry drivers paralysed the S postcode area until management guaranteed a permanent forty-five-minute manual "throw-off" period each morning.
